Babcock Hitachi has developed, designed and constructed HRSG’s based on their over 30 years of conventionally fired boiler technology experience.

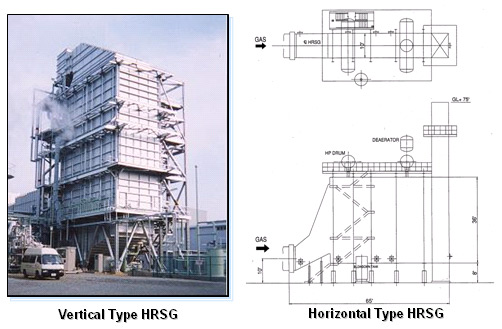

- Satisfies requirements for vertical and horizontal type in accordance with site area restrictions
- Proven reliability
- Easy maintenance
- High constructability (tube bundle with pipe & casing)
Typical Supply Scope
- H.P. Drum
- L.P. Drum
- H.P. Super Heater
- H.P. Evaporator
- H.P. Economizer
- L.P. Super Heater
- L.P. Evaporator
- L.P. Economizer (Pre-heater)
- L.P. Economizer Recirculation Systems
- HRSG Casing and Internal Insulation
- HRSG Inlet and Exhaust Transition Ducts
- HRSG Structural Supporting Steel and Platforms/Ladders/Stairways
- Exhaust Stack
- SCR Catalyst System and Ammonia Injection Grid
- Space for Future CO Catalyst
- Natural Gas Fired Duct Burner and Associated Equipment

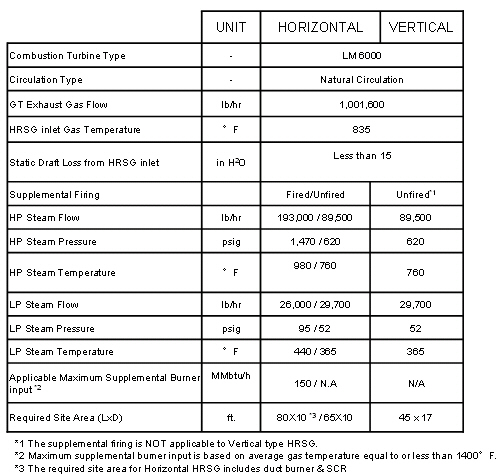

Typical Supply Scope

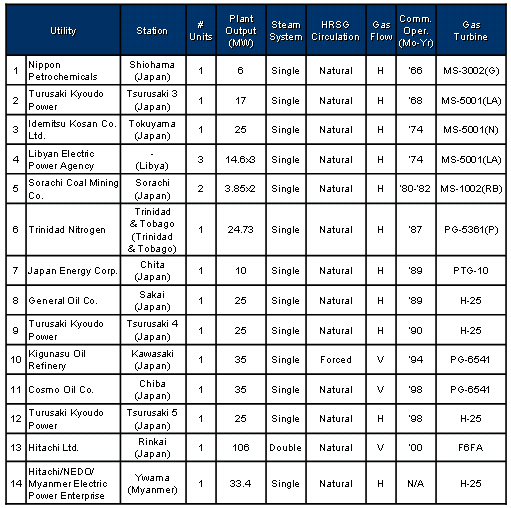

Small Capacity HRSG Supply List
Hitachi HRSG Application (experience)
Steam
- Single
- Dual
- Triple Pressures w/reheat/non-reheat
Types
- Horizontal Gas Flow
- Vertical Gas Flow
- Natural / Forced Circulation
CTG's
- GE F9B
- F9E
- F9EA
- F9FA
- F9H
- F7E
- F7EA,
- F7F
- F7FA,
- F7FB
- F6FA
- F5
- F3
- PGT10
- MHI 501F
- 501G
- 701F
- Siemens V84.3A
- V94.3A
- Hitachi H-25
Fuel
